2855-20

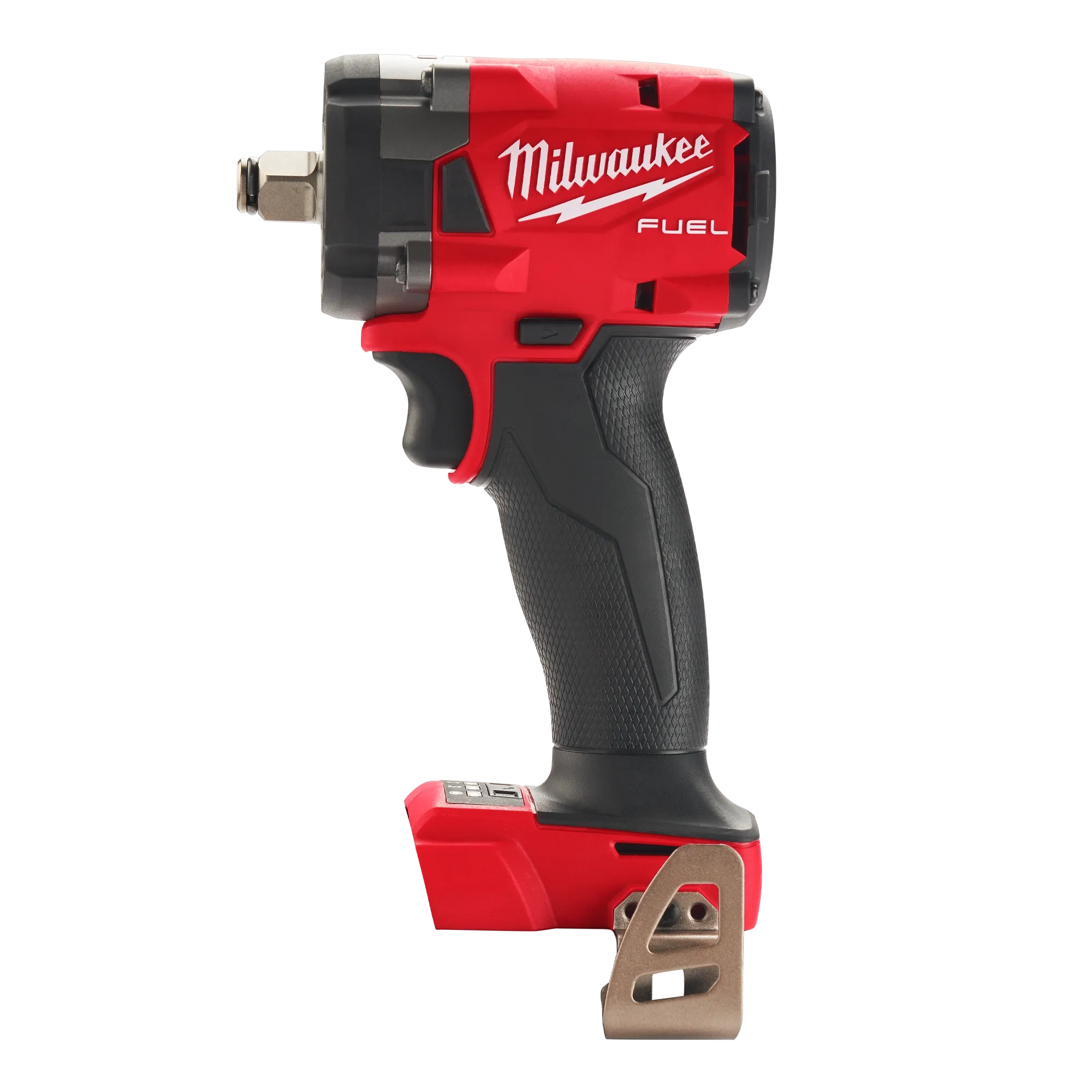

M18 FUEL™ 1/2 " Compact Impact Wrench w/ Friction Ring Bare Tool

Share

Tool Options

2855-20M18 FUEL™ 1/2 " Compact Impact Wrench w/ Friction Ring Bare Tool

In The Box (1)

(1)
M18 FUEL™ 1/2 " Compact Impact Wrench w/ Friction Ring Bare Tool

Specs

Battery System
M18
M12
M18
Motor Type
POWERSTATE™ Brushless
POWERSTATE Brushless
POWERSTATE™ Brushless
Anvil Size
1/2 in
1/2 in
-
Anvil Type
1/2" Square w/ Friction Ring
Friction Ring
Friction Ring
Nut-Busting Torque
250 ft/lbs
550 ft-lbs
650 ft-lbs
Fastening Torque
250 ft/lbs
400 ft/lbs
550 ft-lbs
RPM Range
0 - 2,400 rpm
0-3000 RPM
0 - 2,575 rpm
IPM
0 - 3,500 ipm
0-3300 IPM
0 - 3,100 ipm
DRIVE CONTROL
4-Mode w/ Bolt Removal Mode
4-Mode
4-Mode w/ Bolt Removal Mode
Length
4.9 in
4.9 in
6 in
Weight
3.9 lb
2.2 lb
5.1 lbs
Tool Warranty
5 Year Limited Warranty
-
5 Year Limited Warranty

Product Overview

Our M18 FUEL™ 1/2" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering you the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.9" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The MILWAUKEE® 1/2" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver you brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge.

  • 4.9" in length provides most access in tight spaces

  • The POWERSTATE™ brushless motor delivers up to 250 ft-lbs. of nut-busting torque

  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows

  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode

  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque.

  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.

  • Mode 1 RPMs: 0-900; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400

  • Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500

  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge

  • Works in up to to 69kV environments

  • Compatible with all M18™ batteries & Chargers
